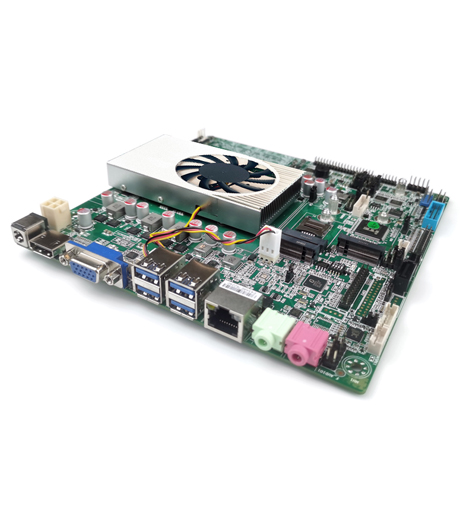

M-G12W
Intel Core i3/i5/i7 10th Gen CPU Series
2*DDR4,up to 64GB
1*M.2 2280 PCIEX4&SATA SSD
1*M.2 2230,For WiFi+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel® Iris® Xe Graphics eligible
Support Windows 10/11 Linux
ITX M/B 17*17cm
2*DDR4,up to 64GB
1*M.2 2280 PCIEX4&SATA SSD
1*M.2 2230,For WiFi+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel® Iris® Xe Graphics eligible
Support Windows 10/11 Linux
ITX M/B 17*17cm
| Processor |
Intel Core i3/i5/i7 12TH Gen CPU Series i3-1215U、i5-1245U、i7-1255U |
| Graphics | Intel® Iris® Xe Graphics eligible |
| Display | 1*VGA |
| 1*HDMI | |
| 1*DP | |
| Memory | 2*DDR4 SO-DIMM，Max64GB |
| Ethernet | 1*Realtek RTL8111E Gbe， Supports WOL、PXE Boot |
| AUDIO | 1* MIC_IN、1*HP_OUT |
| Storage | 1*M.2 2280 PCIEX4&SATA SSD |
| Expansion | 1*M.2 2230，Supports WiFi+BT Module |

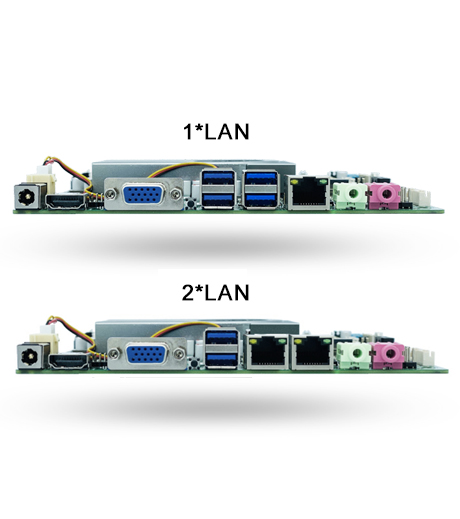

| Rear Panel I/O | 1*DC_IN |
| 1*HDMI | |
| 1*VGA | |
| 2*USB3.2/RJ45(Option） | |
| 1*RJ45 | |
| 2*USB3.2 | |
| 1*HP_OUT，1*MIC_IN | |
| Internal I/O | 4*F_USB2.0 Header（8*USB2.0 Via Internal Header） |
| 1*SATA3.0 | |
| 1*SATA_PWR | |
| 1*CLR_CMOS | |
| 1*AUTO_ON | |
| 6*COM RS232 COM2 Support RS232/485/422 | |
| 1*F_PANEL | |
| 1*F_AUDIO | |
| 1*LVDS_EDP1（Default LVDS）+1*EDP2 | |
| 2*INVERT | |
| 1*SPEAKER | |
| 1*CPU_FAN，1* SYS_FAN | |
| BIOS | AMI UEFI BIOS |
| Power Supply | DC 12V |
| OS | Windows7/10/11/Linux |
| Heat Sink | Smart FAN |
| OTR | -10℃～60℃ |
| STR | -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity,Non-condensing |
| Dimension | 170*170mm |
