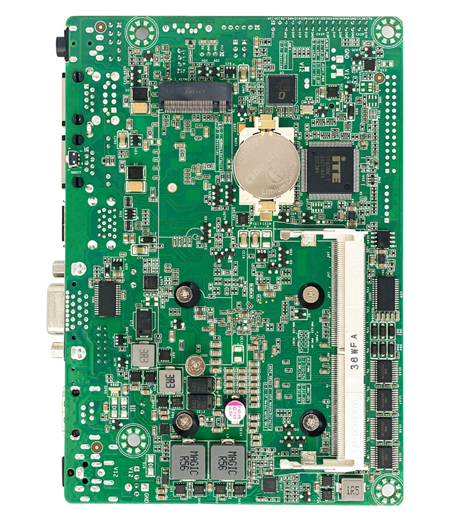

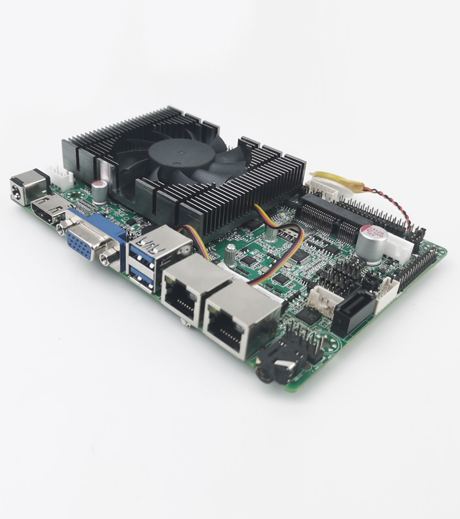

ZC3-6&7TH
Intel Core i3/i5/i7 6&7th Gen CPU Series
1*DDR4,up to 16GB
1*M.2 2280 SATA SSD
1*mPCIe,For WiFi+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel® HD Graphics 520
Support Windows 7/10 Linux
ITX M/B 17*17cm
1*DDR4,up to 16GB
1*M.2 2280 SATA SSD
1*mPCIe,For WiFi+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel® HD Graphics 520
Support Windows 7/10 Linux
ITX M/B 17*17cm
| Processor |
Intel Core i3/i5/i7 6&7TH Gen CPU Series i3-6100U/7100U、i5-6200U/7200U、i7-6500U/7500U |
| Graphics | Intel® HD Graphics 520 |
| Display | 1*VGA |
| 1*HDMI | |
| Memory | 1*DDR4 SO-DIMM，Max16GB |
| Ethernet | 1*Realtek RTL8111E Gbe， Supports WOL、PXE Boot |
| AUDIO | 1* MIC_IN、1*HP_OUT |
| Storage | 1*M.2 2280 SATA SSD |
| Expansion | 1*mini PCIe，Supports WiFi+BT Module |

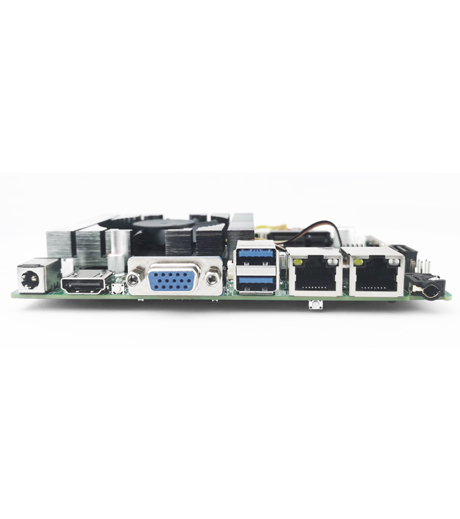

| Rear Panel I/O | 1*DC_IN |
| 1*HDMI | |
| 1*VGA | |
| 2*LAN | |
| 2**USB3.0 | |
| 1*CMOS Key | |
| 1*Key System Restoration 1*Audio | |
| Internal I/O | 4*F_USB2.0 Header（8*USB2.0 Via Internal Header） |
| 1*SATA | |
| 1*SATA_PWR | |
| 1*CLR_CMOS | |
| 1*AUTO_ON | |
| 6*COM RS232 COM1 Support RS232/485 | |
| 1*F_PANEL | |
| 1*F_AUDIO | |
| 1*LVDS_EDP1（Default LVDS） | |
| 1*INVERT | |
| 1*SPEAKER | |
| 1*CPU_FAN，1* SYS_FAN | |
| BIOS | AMI UEFI BIOS |
| Power Supply | DC 12V |
| OS | Windows7/10/11/Linux |
| Heat Sink | Smart FAN |
| OTR | -10℃～60℃ |
| STR | -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity,Non-condensing |
| Dimension | 170*170mm |
