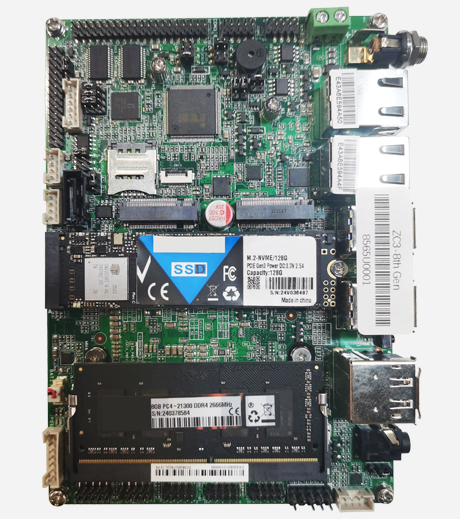

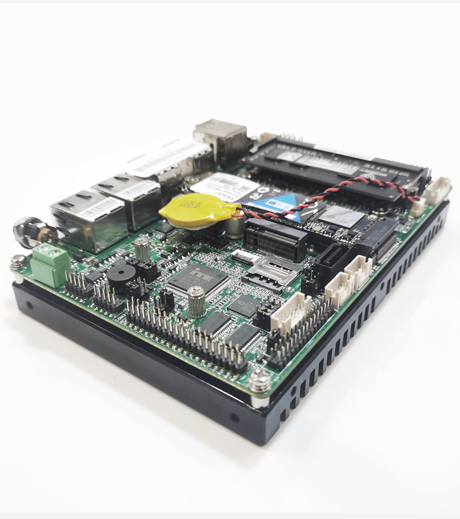

ZC3-8TH
Intel Core i3/i5/i7 8th Gen CPU Series
1*DDR4,up to 16GB
1*M.2 2280 PCIEX4&SATA SSD
1*M.2 2230, For WiFi+BT Module
2*Intel LAN(1*I219+1*I210) Gbe， Supports WOL、PXE Boot
Intel® UHD Graphics
Support Windows 7/10/11 Linux
ITX M/B 17*17cm
1*DDR4,up to 16GB
1*M.2 2280 PCIEX4&SATA SSD
1*M.2 2230, For WiFi+BT Module
2*Intel LAN(1*I219+1*I210) Gbe， Supports WOL、PXE Boot
Intel® UHD Graphics
Support Windows 7/10/11 Linux
ITX M/B 17*17cm
| Processor |
Intel Core i3/i5/i7 8TH Gen CPU Series i3-8145U、i5-8265U、i7-8565U |
| Graphics | Intel® UHD Graphics |
| Display | 1*DP |
| 1*HDMI | |
| Memory | 1*DDR4 SO-DIMM，Max16GB |
| Ethernet | 1*Intel I219+1*i210/I211 Gbe， Supports WOL、PXE Boot |
| AUDIO | 1* Audio(2in1) |
| Storage | 1*M.2 2280 PCIEX4&SATA SSD |
| Expansion | 1*M.2 2230，Supports WiFi+BT Module |
| Rear Panel I/O | 1*DC_IN 12-24V |
| 1*DP | |
| 1*VGA | |
| 2*LAN | |
| 4**USB3.1 | |
| 1*Audio(2in1) | |
| 1*CMOS Key | |
| Internal I/O | 3*F_USB2.0 Header（6*USB2.0 Via Internal Header） |
| 1*SATA3.0 | |
| 1*SATA_PWR | |
| 1*CLR_CMOS | |
| 1*AUTO_ON | |
| 6*COM RS232 COM1 Support RS232/485 | |
| 1*F_PANEL | |
| 1*F_AUDIO | |
| 1*LVDS_EDP1（Default LVDS） | |
| 1*INVERT | |
| 1*SPEAKER | |
| 1*CPU_FAN，1* SYS_FAN | |
| BIOS | AMI UEFI BIOS |
| Power Supply | DC 12-24V |
| OS | Windows7/10/11/Linux |

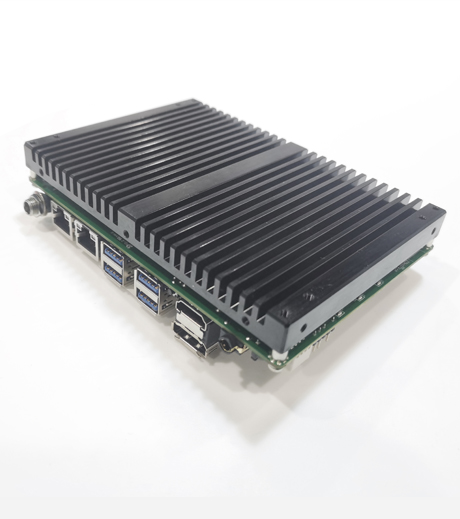

| Heat Sink | Smart FAN |
| OTR | -10℃～60℃ |
| STR | -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity,Non-condensing |
| Dimension | 170*170mm |
