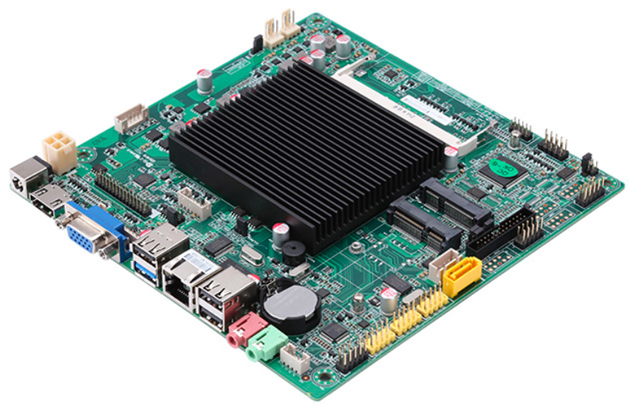

M-J19T

CPU/GPU

Intel® Bay Trail J1900 Quad-core 2.0GHz CPU

RAM

1*SO-DIMM, Support DDR3L  1333MHz Max. 8GB

Storage

1*mSATA SSD、1*SATA

Sound Card

Realtek ALC662

Network Card

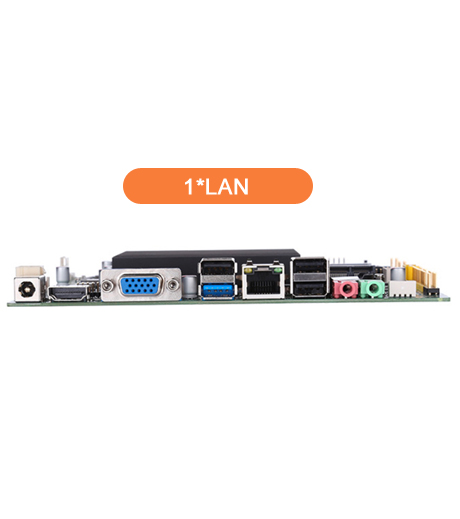

1*Realtek RTL8111H LAN IC, PCI-E Gigabit LAN

1*MINI PCI-E Interface, Support WIFI

LVDS/EDP

Support Single / Dual Channel 24-bit LVDS, Support Max. Resolution: 1920*1200

Dual Display

VGA+LVDS  HDMI+ LVDS  VGA+HDMI Synchronous / Asynchronous

COM

6*COM RS-232 (COM2 Can select battery 5V/12V)

USB

9× USB 2.0，1×USB 3.0

I / O

1*DC_IN，1*HDM，I1*VGA，1*USB 3.0，3*USB 2.0，1*RJ45，1*HP_OUT，1*MIC_IN

Internal I/O

1*EDP/LVDS Pin,1*JVGA Pin, 1*Front Audio Pin, 1*Amplifier Pin

6* COM RS-232 interface, 3*USB 2.0/1.1 pin can expand 6*USB 2.0/1.1 interface

1*8bit GPIO Pin, 1*LPT Print interface, 1*JPS/2 Pin，1* Invert backlit connector pin

1*4-pin DC 12V Power input interface, 1*CPU Fan power supply socket, 1*System fan power supply socket

1*SATA Socket + Power supply pin, 1*Front board pin, 1*Buzzer

Special Function

Support watchdog, no disk start, wake up network, power-on startup, timing startup

Mechanical & Environmental

Power Supply Mode

DC 12V

Thermal discharge

Fanless

Size (L*W)

170mm*170mm

Work Temperature

0~50℃

Storage Temperature

-40~75℃

Humidity

0~90% air humidity, no condensation

Application     Industrial computer, industrial tablet computer, self-service terminal, on-board computer, medical, digital signage, POS cash register, etc
