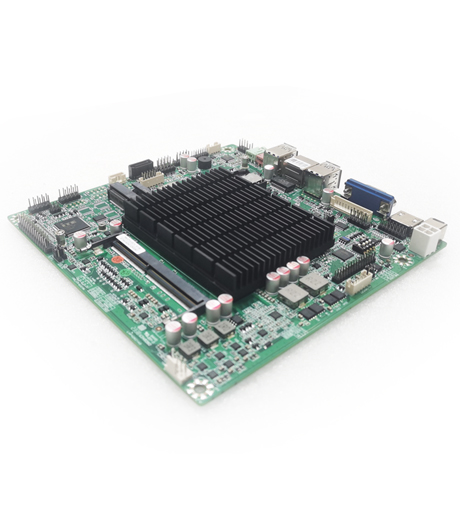

M-J641Z
J6412 Quad core 2.0-2.6G
1*DDR4,up to 16GB
1*M.2 2242/2280 SATA/PCIE X2 SSD
1*mPCIE，Supports WIFI+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel UHD Graphics
Support Windows 7/8/8.1/10/11/ Linux
SIZE 17*17cm
1*DDR4,up to 16GB
1*M.2 2242/2280 SATA/PCIE X2 SSD
1*mPCIE，Supports WIFI+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel UHD Graphics
Support Windows 7/8/8.1/10/11/ Linux
SIZE 17*17cm
| CPU | Built-in Intel Celeron J6412 Quad Core 2.0-2.6G |
| Graphics | Intel UHD Graphics |
| Display | 1*VGA Port/DP(Option） |
| 1*HDMI1.4, Max Reslution 4096X2160@30Hz | |
| 1*LVDS/eDP(Option） | |
| Memory | 1*DDR4 SO-DIMM，Max.16GB DDR4/3200MT/s |
| Ethernet | 1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot |
| AUDIO | 1*Realtek ALC897，Whit MIC_IN/HP_OUT and Amplifier |
| Storage | 1*SATA3.0 |
| 1*M.2 KEY M，Supports M.2 2242/2280 SATA/PCIE X2 SSD | |
| Expansion | 1*mPCIE，Supports WIFI+BT/3G/4G/5G Module |
| 1*SIM Card Slot | |
| Rear Panel I/O | 1*DC_IN |
| 1*HDMI | |
| 1*VGA/DP(Option） | |

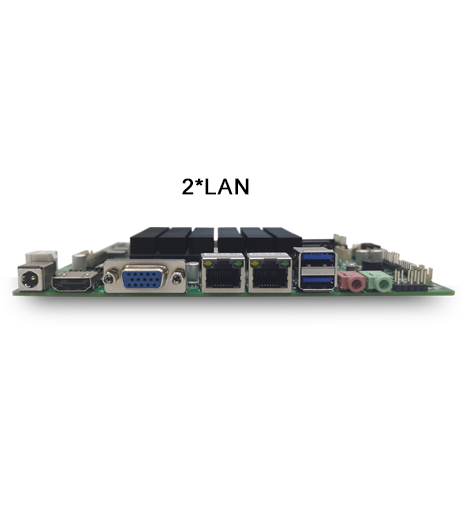

| 2*USB2.0/RJ45(Option） | |

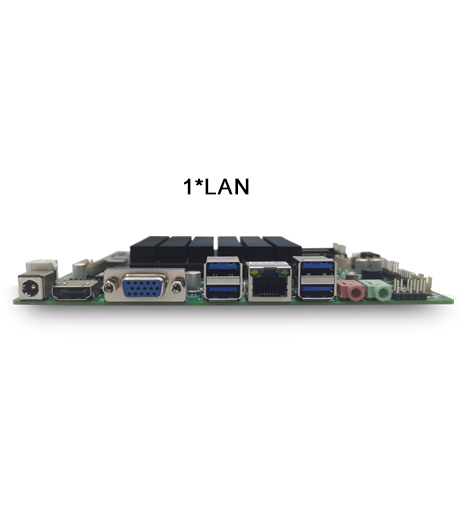

| 1*RJ45 | |
| 2*USB3.0 | |
| 1*HP_OUT，1*MIC_IN | |
| Internal I/O | 2*F_USB2.0 Header，4*USB2.0 Via Internal Header |
| 1*SIM Card | |
| 1*SATA_PWR/1*SATA3.0 6Gbps | |
| 1*LPT | |
| 1*CLR_CMOS | |
| 1*AUTO_ON | |
| 6*COM，COM2 Supports RS232/RS485 Option | |
| 1*F_PANEL | |
| 1*F_AUDIO | |
| 1*LVDS/1*INVERT | |
| 1*PS/2 | |
| 1*LVDS_PWR | |
| 1*SPEAKER | |
| 1*CPU_FAN，1* SYS_FAN | |
| 1*ATX_4P | |
| BIOS | 64M Flash ROM |
| Power Supply | DC 12V |
| OS | windows10/11/Linux |
| Heat Sink | Smart FAN |
| OTR | -10℃～60℃ |
| STR | -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity,Non-condensing |
| Dimension | 170*170mm |
