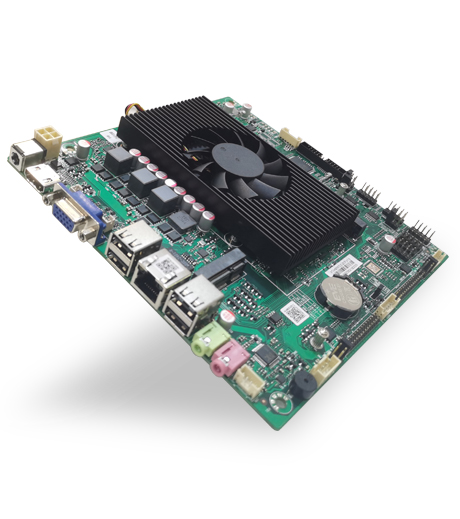

M-i23T
Intel Core i3/i5 2&3th Gen M CPU Series
1*DDR3L,up to 8GB
1*MSATA SSD
1*mini PCIe,For WiFi+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel HD Graphics
Support Windows XP/7 Linux
ITX M/B 17*17cm
1*DDR3L,up to 8GB
1*MSATA SSD
1*mini PCIe,For WiFi+BT Module
1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot
Intel HD Graphics
Support Windows XP/7 Linux
ITX M/B 17*17cm
| Processor | Intel Core i3/i5 2&3TH Gen CPU Series |
| Graphics | Intel HD Graphics |
| Display | 1*VGA Port |
| 1*HDMI | |
| 2*LVDS、2*EDP | |
| Memory | 1*DDR3L SO-DIMM，Max8GB |
| Ethernet | 1*Realtek RTL8111E Gbe， Supports WOL、PXE Boot |
| AUDIO | 1* MIC_IN、1*HP_OUT |
| Storage | 1*MSATA |
| Expansion | 1*mPCIE，Supports WiFi+BT Module |
| Rear Panel I/O | 1*DC_IN |
| 1*HDMI | |
| 1*VGA | |
| 2*USB2.0/RJ45(Option） | |
| 1*RJ45 | |
| 2*USB2.0 | |
| 1*HP_OUT，1*MIC_IN | |
| Internal I/O | 3*F_USB2.0 Header（6*USB2.0 Via Internal Header） |
| 1*JHDMI，1*JVGA | |
| 1*SATA_PWR | |
| 1*CLR_CMOS | |
| 1*AUTO_ON | |
| 4*COM RS232 | |
| 1*F_PANEL | |
| 1*F_AUDIO | |
| 2*LVDS 2*eDP | |
| 2*INVERT | |
| 1*SPEAKER | |
| 1*CPU_FAN，1* SYS_FAN | |
| BIOS | AMI UEFI BIOS |
| Power Supply | DC 12V |
| OS | Windows7/10/11/Linux |
| Heat Sink | Smart FAN |
| OTR | -10℃～60℃ |
| STR | -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity,Non-condensing |
| Dimension | 170*170mm |
