NANO-N5000S2L
N5000 Quad core 1.1-2.8G
1*DDR4,up to 8GB
1*M.2 KEY M，Supports M.2 2242/2280 SATA/PCIE SSD
1*M.2 KEY E，Supports WIFI+BT Module
2*Intel i211AT， Supports WOL、PXE Boo
Intel UHD Graphics 600
Support Windows 7/8/8.1/10/11/ Linux
ITX M/B 12*12cm
1*DDR4,up to 8GB
1*M.2 KEY M，Supports M.2 2242/2280 SATA/PCIE SSD
1*M.2 KEY E，Supports WIFI+BT Module
2*Intel i211AT， Supports WOL、PXE Boo
Intel UHD Graphics 600
Support Windows 7/8/8.1/10/11/ Linux
ITX M/B 12*12cm
| Processor |
Intel Pentium N5000 Quad core 1.1-2.8G Intel Gemini Lake/Gemini Lake-R |
| Graphics | Intel UHD Graphics 600 |
| Display | 1*HDMI2.0, Max Reslution 4096X2160@60Hz |
| 1*HDMI1.4, Max Reslution 4096X2160@30Hz | |
| 1*eDP | |
| Memory | 1*DDR4 SO-DIMM，Max.8GB DDR4/2400MT/s |
| Ethernet | 2*Intel i211AT， Supports WOL、PXE Boot |
| Storage | 1*SATA 6Gbps |
| 1*M.2 KEY M，Supports M.2 2242/2280 SATA/PCIE SSD | |
| Expansion | 1*M.2 KEY E，Supports WIFI+BT Module |

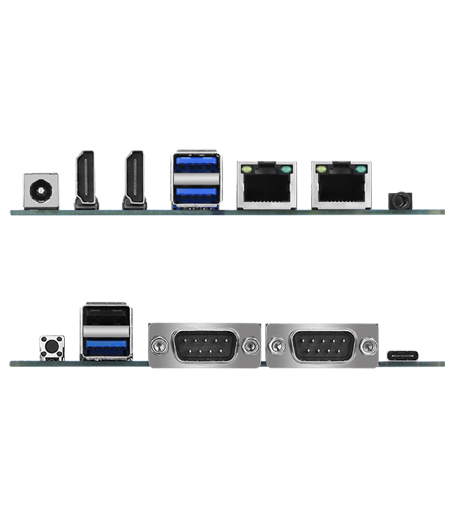

| Rear Panel I/O | 1*DC_IN |
| 2*HDMI | |
| 2*USB3.0 | |
| 2*RJ45 | |
| 1*AUDIO | |
| Front I/O | 1*PWR_BTN |
| 1*USB2.0 | |
| 1*USB3.0 | |
| 2*COM | |
| 1*Type-C，Only data | |
| Internal I/O | 1*SATA3.0 |
| 1*SATA_PWR | |
| 1*F_Panel | |
| 1*eDP | |
| 1*AUTO_ON | |
| 1*CPU_FAN | |
| BIOS | 64M Flash ROM |
| Power Supply | DC 12V |
| OS | windows10/11/Linux |
| Heat Sink | Fanless，Smart FAN Optional |
| OTR | -10℃～60℃ |
| STR | -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity,Non-condensing |
| Dimension | 120*120mm |
