ZC3-J641H
Intel J6412 Quad core 2.0-2.6G
1*DDR4 2400,up to 16GB
1*MSATA SSD
1*mPCIE (Wifi+BT Module)
2*Intel I225V Gbe， Supports WOL、PXE Boot
Intel UHD Graphics
Support Windows 7/8/8.1/10/11/ Linux
Size 148*102mm
1*DDR4 2400,up to 16GB
1*MSATA SSD
1*mPCIE (Wifi+BT Module)
2*Intel I225V Gbe， Supports WOL、PXE Boot
Intel UHD Graphics
Support Windows 7/8/8.1/10/11/ Linux
Size 148*102mm

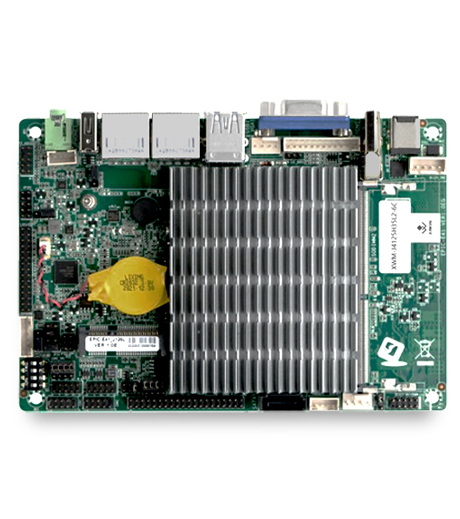

| Model | XWM-J6412H35L26C |
| CPU | Built-in Intel Celeron J6412 Quad Core 2.0-2.6G |
| Graphics | Intel UHD Graphics |
| Display | 1*VGA ，1*HDMI，1*LVDS |
| Memory | 1*DDR4 SO-DIMM，Max.16GB DDR4/2400MT/s |
| Ethernet | 2*Intel I225V Gbe， Supports WOL、PXE Boot |
| AUDIO | 1*Realtek ALC897，Whit MIC_IN/HP_OUT and Amplifier |
| Storage | 1*SATA3.0 |
| 1*MSATA SSD | |

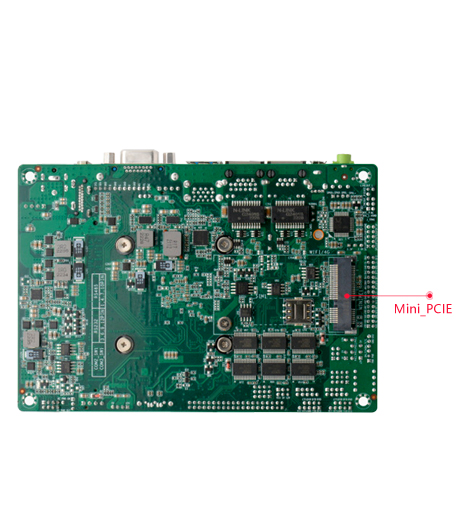

| Expansion | 1*mPCIE，Supports WIFI+BT/3G/4G/5G Module |
| 1*SIM Card Slot | |

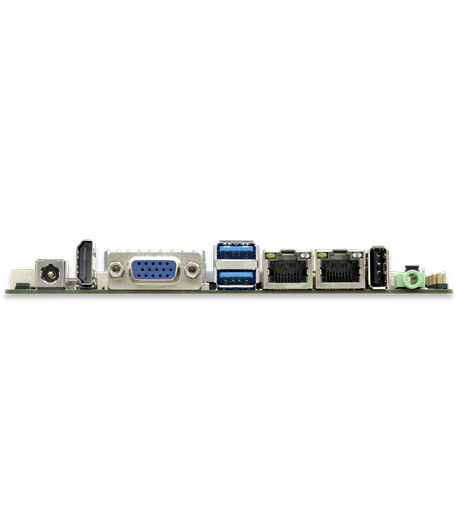

| Rear Panel I/O | 1*DC_IN 12V |
| 1*HDMI | |
| 1*VGA | |
| 2*USB3.0 | |
| 2*RJ45 | |
| 1*USB2.0 | |
| 1*Line out | |
| Internal I/O | 1*DC power port,1*4pin,support12V Power input/output |
| 1*JVGA 1*12pin，same signal as DB15 | |
| 1*LVDS,2*15PIN,support dual channel 24BIT | |
| 1*Screen backlight power interface,1*6pin | |
| 4*USB2.0,2*5pin | |
| 6*COM RS232 Ports,COM2/COM3 support RS485/422 Fuction | |
| 1*HDD Power interface,1*4pin | |
| 1*Front audio interface,2*5pin | |
| 1*Power amplifier interface,1*4pin | |
| 1*SIM card slot | |
| 1*Front panel function button and indicator light interface,2*5pin | |
| 1*F_PANEL | |
| 1*CPU_FAN | |
| GPIO | Support 4 input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Watch Dog | Support hardware reset function (256 levels,0~255 seconds) |
| OS | windows10/11/Linux |
| Power Type | DC 12V power supply |
| working Temp. | -10℃～60℃ |
| Storage Temp. | -20℃～70℃ |
| Humidity | 5%-95% Relative Humidity,Non-condensing |
| Dimension | 148*102mm |
