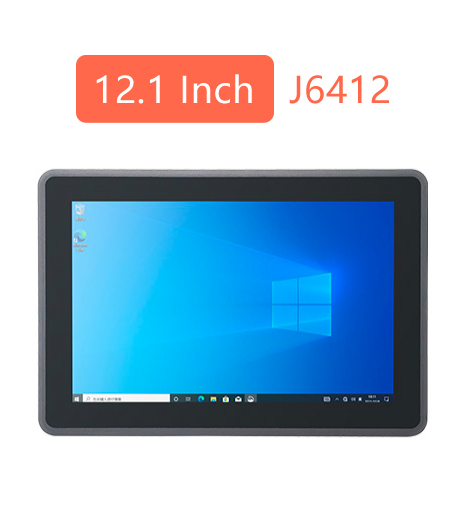

XW121-J64G_L12C
■ PCAP Multi-touch IPS Rugged 12.1" Projective
■ 1*SO-DIMM DDR4 max 16G
■ 1*M.2 SATA/PCIE SSD

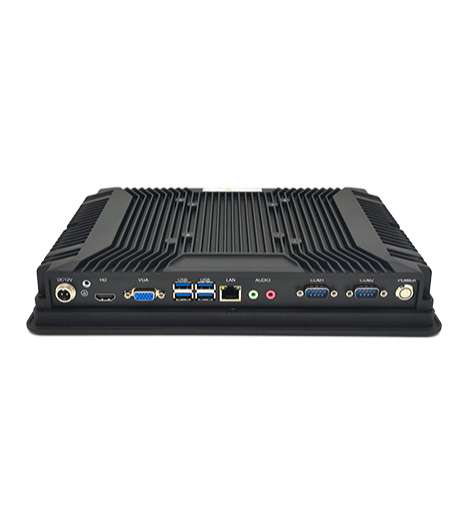

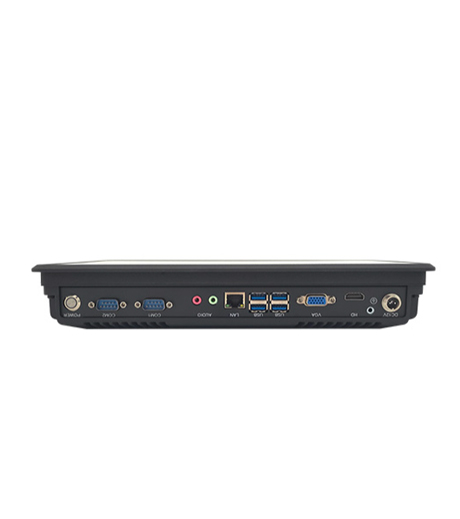

■ 4*USB3.0/2*RS232(Optional RS485/422)
■ 1*HDMI/1*VGA/1*Gbe LAN/2*Audio
■ Fanless design
■ IP65 Rated Front Panel
XW121-J64G_ L12C is a low-power, highly reliable, fanless, capacitive touch industrial tablet computer product. The front and rear panels are formed by aluminum alloy die casting+CNC, and the rear shell has a dual heat dissipation effect. The entire machine adopts an ultra-thin fanless design, and the panel protection level can reach IP65.
This product has rich I/O interfaces and can be equipped with Win10/11 and Linux operating systems.
This series of products has strong expandability, and can be selected from multiple display sizes of 12.1 ", 15", 15.6 ", 18.5", 17 ", 19", and 21.5 ". It can flexibly customize the number of serial ports and USB interfaces, and can be selected from 9-36V wide voltage, 8-ohm 3-watt speaker, NFC (back), binocular identification camera, WIFI&BT, 4G/5G communication, etc.
| System specifications | |||
|
CPU
Watchdog |
Built-in Intel Celeron J6412 Quad Core 2.0-2.6G 0-255 seconds/grading implemented through system software |
RAM Storage |
8GB (Optional 16GB) 128GB SSD (可选256/512GB) |
|
Display |
|||
|
LCD Type Backlight Life-Time Max. Resolution |
12.1″ 50000h
1280*800 |
Luminance Contrast Ratio Viewing Angle |
500 cd/m2 1200: 1
170°(H)*170°(V) |
|
Touchscreen |
|||
|
Touchscreen Type Light Transmission |
12.1″Multi-touch projected capacitive
＞85% |
Hardness
|
6H
|
|
OS |
|||
|
OS |
Win10/11,Linux |
|
|
|
I/O |
|||
|
USB Serial port LAN 音频 |
4*USB3.0 2*RS232 (1*RS422/RS485 optional ) 1*1000M（Optional 2*1000M） Mic in,Line out |
Video Expansion Slot GPIO |
1*HDMI,1*VGA 1*Mini PCIe (Wifi/BT/3G/4G optional)
1*8bit DIO，Occupying a DB9 interface |
|
Power |
|||
|
Power Input |
Standard 12V/5A aviation head adapter（Optional 2PIN Phoenix terminal） |
||
|
Environment |
|||
|
Vibration Protection Shock Protection
Reliability IP Rating |
5-19Hz/1.0mm amplitude; 19-200Hz/1.0g acceleration Acceleration 10G/11ms
MTBF≥30000h; MTTR≤0.5h Front panel IP65 |
Operating Temp. Storage Temp. Humidity |
-10℃～60℃ 表面空气流动 -20℃～70℃
95% @40℃，non-condensing |
| Mechanical | |||
|
Size (W x H x D) Weight Colour |
315.8mm*218mm*52.9mm 3.5kg/3.9kg(N.W/G.W） Black |
Material Installation method |

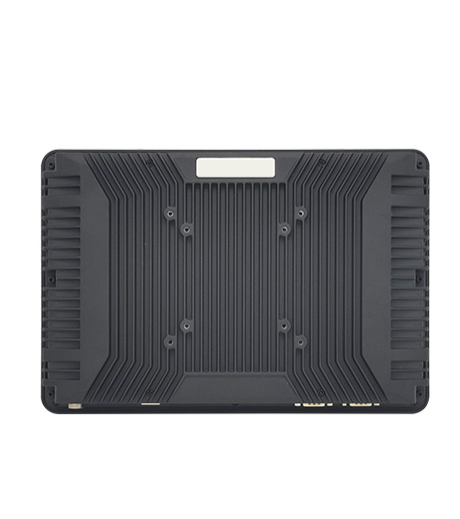

All-metal fanless design VESA：100mm*100mm/75mm*75mm Embedded installation 302.1mm*204.3mm |
